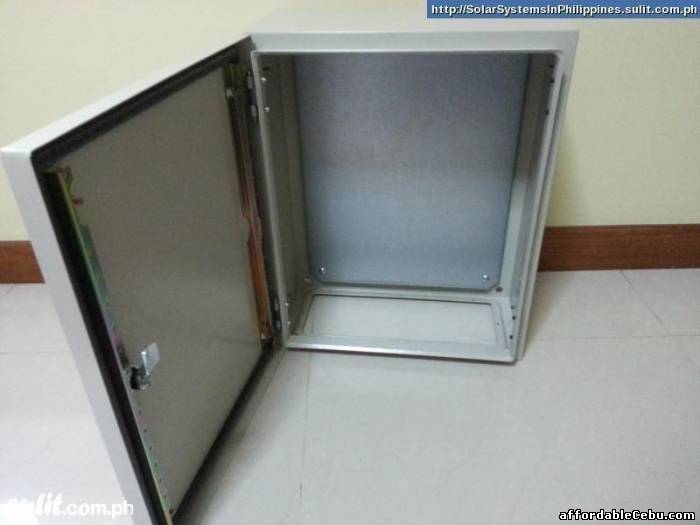

Metal Enclosure

The metal enclosures are made from:

.  a continuous length of sheet steel double folded at the front with back welded to the frame

.  externally and internally protected with polyester epoxy resin grey paint to RAL-7035 texturized

.  welded studs on the back for direct fixing of mounting plate or other accessories

.  perforated door reinforcement profiles allowing fixing of equipment

.  concealed and easily removable hinges allowing over 12 door opening

.  foamed-in polyurethane gasket and front rain qutter ensures high degree of protection

.  available in various sizes as follows:

Product Code	HxWxD	Product Code	HxWxD
ME 202015	200 x 200 x 150	ME 505020	500 x 500 x 200
ME 302015	300 x 200 x 150	ME 505025	500 x 500 x 250
ME 302515	300 x 250 x 150	ME 604020	600 x 400 x 200
ME 303015	300 x 300 x 150	ME 604025	600 x 400 x 250
ME 303020	300 x 300 x 200	ME 605020	600 x 500 x 200
ME 304015	300 x 400 x 150	ME 605025	600 x 500 x 250
ME 304020	300 x 400 x 200	ME 606030	600 x 600 x 300
ME 403015	400 x 300 x 150	ME 705020	700 x 500 x 200
ME 403020	400 x 300 x 200	ME 705025	700 x 500 x 250
ME 404020	400 x 400 x 200	ME 806025	800 x 600 x 250
ME 504015	500 x 400 x 150	ME 806030	800 x 600 x 300
ME 504020	500 x 400 x 200	ME 1008025	1000 x 800 x 250
ME 504025	500 x 400 x 250	ME 1008030	1000 x 800 x 300
		ME 1208030	1200 x 800 x 300
